SHOT BLASTING MACHINE



GURU NANAK MFG COMPANY : We are one of the leading Manufacturers & Exporters of Shot Blasting machines, Grit blasting machines, Shot peening machines, Dust collectors as well Spare parts, at Jallandhar in India. These are the Airless Centrifugal Wheel blasting machines suitable for the cleaning & finishing of castings, forgings, aluminium die castings, brass & gun metal components, sheet metal as well the tempered or hardened parts. We have installed our shot blast machines with many Top brands in the Automobile sector in India, with repeated orders since last many years.

Tumblast Shot Blasting Machines sizes available :14" x 18",  20" x 27",  20" x 42"



We have the very strong 'IN HOUSE' infrastructure, for the production of shot blasting machines with our own stringent quality control methods. Our only aim is to offer the best quality of machines at the prices within the reach of all. Almost regular R & D is carried on by us for any further improvement in the quality of Products. Though we are specialised in Airless Tumblast model of Shot blasting machines in dozen of Sizes, all the other models manufactured by us are equally popular. That's the reason, we have the regularly enhancing customer base.





Tumblast Shot Blasting Machines 27" x 36",  30" x 43"



The shot blast machines being manufactured by us include  Tumblast shot blasting machine, Swing table shot blasting machine, Single table shot blasting machine, Double table shot blasting machine, Rotary hanger shot blasting machine, Monorail shot blasting machine, Continuous conveyor shot blasting machines as well the Paver shot blasting machines, Clutch plates shot blasting machines.





Tumblast Shot Blasting Machines 36" x 42",  42" x 42",  48" x 48" with Auto Loader & Automation





What is Shot Blasting :




Shot blasting is a process of cleaning & finishing of castings, Forgings, Aluminium & Zinc Die castings, Brass & Gun metal parts, Sheet metal & Tempered / hardened components. In this process, Steel shots / Grits are thrown by a Centrifugal blasting rotor on the components. The Abrasive media that hits the parts / components, cleans them & gives a universal finish to the complete lot. The abrasive media is automatically re-circulated by the Bucket elevator, making it a continuous process, till the batch finishes. Once the timings are over, components are removed & a new batch is loaded to repeat the process. The benefit of Shot blasting is, that components get a clean, finished & universal look & many of the drawbacks in it are either removed or hide in the process that enhances its marketing ability.





Different models of Shot Blasting machines :




These Shot blasting machines are available in various Automatic, Semi Automatic, manual models, depending upon the requirement of the industry as below :

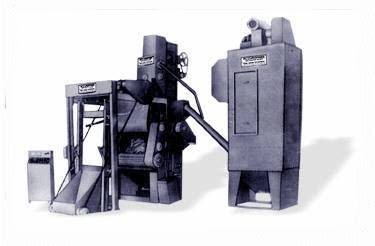

Tumblast Shot Blasting Machine :



The components are loaded in batches on the conveyor belt of Shot blasting machine. Centrifugal blasting rotor throws the abrasives on the component & than it passes through the holes in the belt. It is automatically re-circulated and the process is continued. The result is the neat & clean components with a universal finish. This is a mass finishing machine suitable for batch processing applications.








Swing Table Shot Blasting Machine :




Swing table Shot blasting machine is useful where the components are either heavy or only Top portion of the component is to be shot blasted. The components are loaded on the table instead of the conveyor belt & rest of the process is same as that of a Tumblast shot blasting machine.

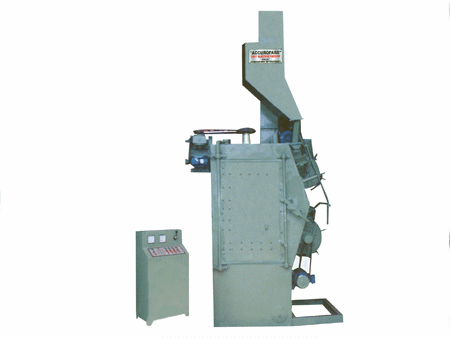

Hanger Shot Blasting Machine :



in the Hanger type shot blasting machine, the components are hanged on rotary hangers & rotated automatically. It may be a Monorail type machine or with Single / Double door machine or with a Centralised fixed hanger inside the chamber of the machine.

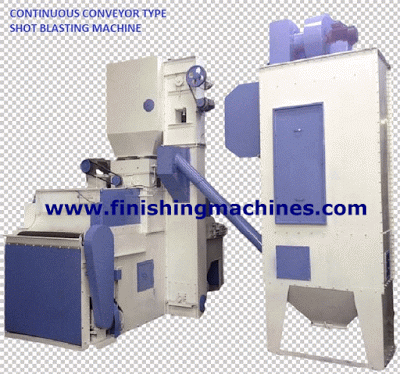

Continuous Conveyor Shot Blasting Machine :

The components are loaded in the Continuous conveyor shot blasting machine on a conveyor belt that passes through the shot blasting chamber with one or more centrifugal blast cleaning rotors. The cleaned & finished components emerge on the other end of the conveyor belt when it comes out of the blast cleaning chamber. Generally upper layer of the component gets shot blasted in the machine though options of more rotors to cover the components from all sides also exist.




Spare Parts for Shot Blasting Machines  :




You can try our spare parts for shot blast machines being manufactured in india at various places, such as : Jallandhar, Delhi, Faridabad, Ludhiana, Jodhpur, Ahmedabad, Coimbatore, Bangaluru, Mumbai etc. Certain pdf files will be added soon containing our catalogues for download. Please feel free to ask for our price, price range, quotations without any obligation. Blades, Rotor, Liner, Side plate, Cage impeller, Top segment, Cage adapter, Bucket elevator etc. are always readily available. Please feel free to contact us for Shot blasting machines & Spare parts.





Manufacturers & Exporters :




GURU NANAK MFG. COMPANY




Delhi Office : F-19/10, Krishan Nagar, Delhi - 110051, India




Mobile:    0091 - 9212004471




E mail : metalfinishing@yahoo.co.in




( H.O. & works : Jallandhar)





Dealership Enquiries for EXPORT of Shot Blasting Machine, Grit blasting machine, Spare parts, solicited from India, Sri Lanka, Bangladesh, Nepal, Indonesia, Bhutan, USA, UK, Canada, Italy, Germany, Japan, Egypt, UAE, Australia, New Zealand, Hungry, Russia, Africa, Canada  & other countries.
